Description

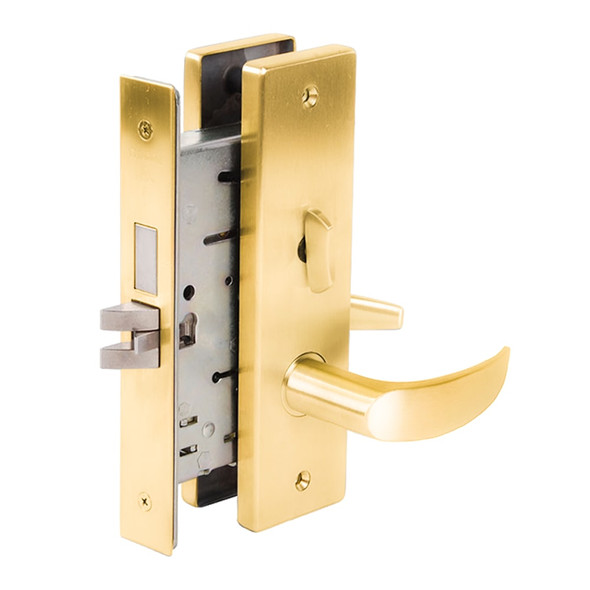

The Falcon MA541B SG 605 is a heavy-duty mortise lock built for commercial environments like offices, hospitals, and educational facilities. This dependable lock combines security with durability to handle constant use without fail. The interchangeable core design allows quick re-keying and is compatible with SFIC products, making retrofit and maintenance simple and cost-effective for facility managers.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards for reliability. Right-hand handing is standard; left-hand is available and field-reversible. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified functions, and compatibility with your specific door configuration.
Specifications
- Brand: Falcon
- Model: MA541B SG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, field reversible
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyway: "G" standard (standard cylinder), "A" standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified Functions: Available in 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
