Description

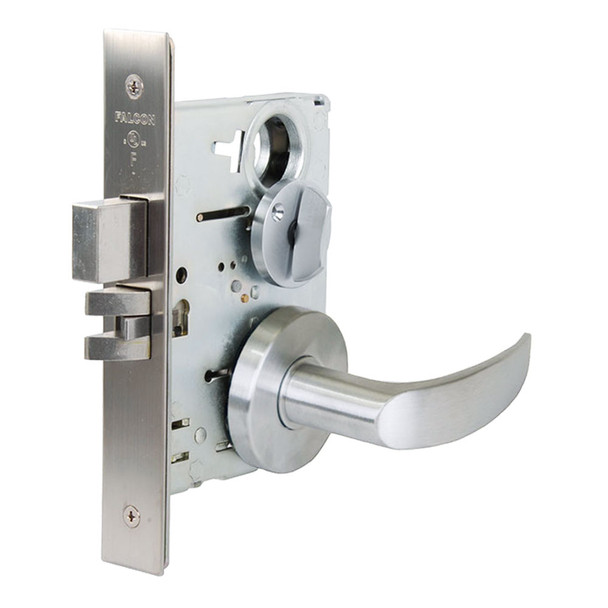

The Falcon MA Series mortise lock delivers commercial-grade security and reliability for offices, hospitals, educational facilities, and other institutional buildings. Built tough for constant use, this lock features a two-piece stainless steel latch bolt with anti-friction design and a 1-inch dead bolt with saw-resistant rollers, making it an ideal choice for high-traffic environments requiring dependable performance.
The MA541CP6 accommodates doors 1-3/8 to 2-1/2 inches thick with a 2-3/4 inch backset, and features an interchangeable core (IC) for quick re-keying without removing the lock body. SFIC-compatible cylinders accept 6 or 7-pin keys. As an authorized Allegion dealer, E.D. Locks offers expert guidance on keying, installation, and finish selection. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical support or custom specifications.
Specifications
- Brand: Falcon
- Model: MA541CP6 AG 626
- Lock Type: Mortise
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 6 or 7-pin IC available
- Keyway: A keyway standard on IC cylinder
- Faceplate: 1-1/4 x 8 inch, adjustable for door bevel
- Handing: Right hand standard, left hand optional, reversible in field
- Finish: 626
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified Options: 12 or 24 VDC available
