Description

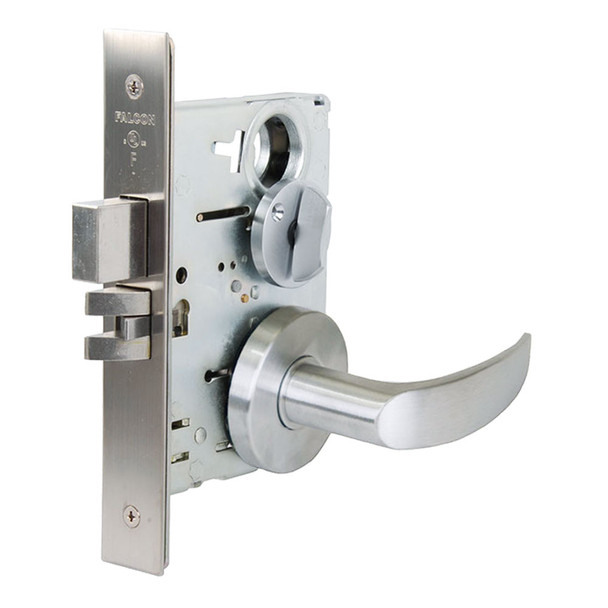

The Falcon MA571CP6 AG 626 is a heavy-duty mortise lock designed for commercial buildings including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a stainless steel latch bolt, anti-friction mechanism, and a 1-inch throw deadbolt with saw-resistant rollers to withstand constant use.
The lock accommodates door thickness from 1-3/8 to 2-1/2 inches with a 2-3/4 inch backset and supports SFIC interchangeable cores for fast re-keying without removing the lock body. It meets ANSI A115.1 and carries a 3-hour UL label. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert specification assistance and keying options.
Specifications
- Brand: Falcon
- Model: MA571CP6 AG 626
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case: Cold-formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with hardened steel rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin for SFIC
- Faceplate: 1-1/4 by 8 inches, brass or stainless steel, adjustable for bevel
- Handing: Right-hand standard, left-hand optional, field-reversible
- ANSI/BHMA: 156.13, Series 1000
- UL: 3-hour A label
- Electrified: Available 12 or 24 VDC
