Description

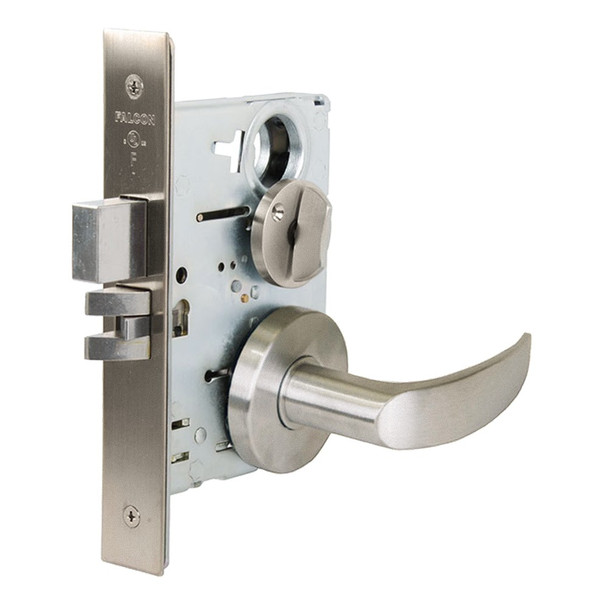

The Falcon MA Series mortise lock delivers dependable security for commercial offices, hospitals, educational facilities, and high-traffic buildings. Built tough with cold-formed steel construction and a mechanical anti-friction latch, this lock handles constant daily use without fail. The interchangeable core design enables quick re-keying in the field, reducing downtime and maintenance costs.
Compatible with standard SFIC products and available in multiple pin configurations (5, 6, or 7-pin). Fits door thicknesses 1-3/8" to 2-1/2" with a 2-3/4" backset, and is field-reversible for right or left-hand installation. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, finish selection, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for specification details and bulk pricing.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keys: Two nickel silver keys standard
- Keyways: G keyway standard; A keyway on I/C cylinder
- Handing: Right hand standard, left hand optional, reversible in field
- Faceplates: 1-1/4" x 8" armored brass or stainless steel
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Meets ANSI/BHMA 156.13 Series 1000
- UL Rating: 3 hour A label
