Description

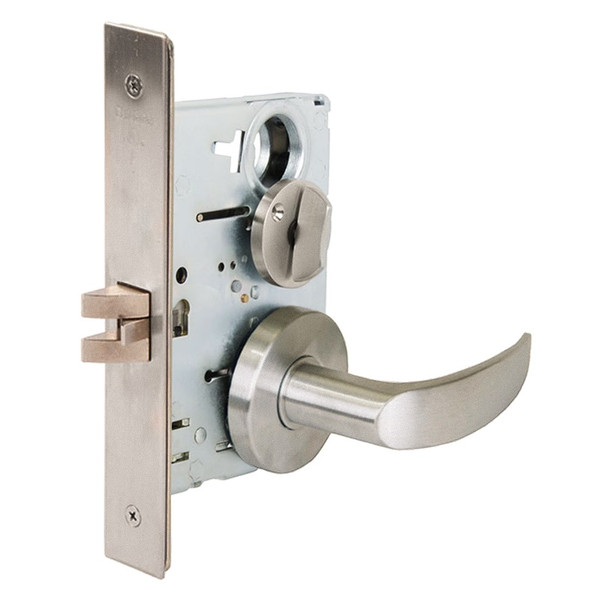

The Falcon MA321 AG 630 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational institutions. It delivers dependable security with a mechanical anti-friction latch and saw-resistant dead bolt, handling constant daily use without failure. The interchangeable core design enables quick re-keying in the field, reducing maintenance costs and downtime.
Compatible with standard door frames and SFIC products from other manufacturers, this lock installs in doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. As an authorized Falcon dealer, E.D. Locks provides expert guidance and competitive pricing. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions or to discuss your project needs.
Specifications
- Brand: Falcon (Allegion)
- Model: MA321 AG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G (standard cylinder), A (interchangeable core)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" armored, adjustable for door bevel
- Handing: Right hand standard; left hand and field reversible options available
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Includes: Two nickel silver keys
