Description

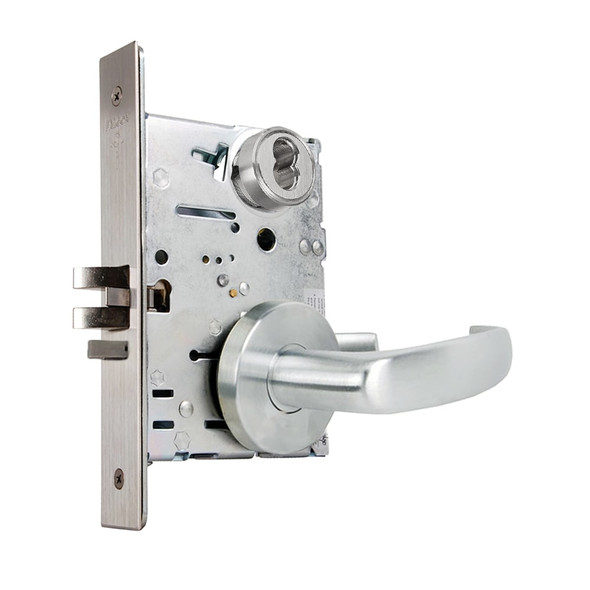

The Falcon MA561B is a commercial mortise lock engineered for offices, hospitals, schools, and high-traffic facilities demanding reliability and security. Its two-piece stainless steel latch bolt and hardened steel roller deadbolt resist wear and tampering, making it ideal for environments requiring dependable access control without compromise.
This lock accepts SFIC interchangeable cores for fast re-keying and is reversible in the field, simplifying retrofit projects. Compatible with standard 1-3/8" to 2-1/2" door thicknesses. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying guidance, finish selection, and electrification options to match your project requirements.
Specifications
- Brand: Falcon (by Allegion)
- Model: MA561B
- Finish: QN 626 (Satin Chrome)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, two-piece stainless steel with anti-friction design
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin on I/C cores
- Keyways: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Handing: Right hand standard; left hand and field-reversible options available
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: Available in 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Keys Furnished: Two nickel silver keys standard
