Description

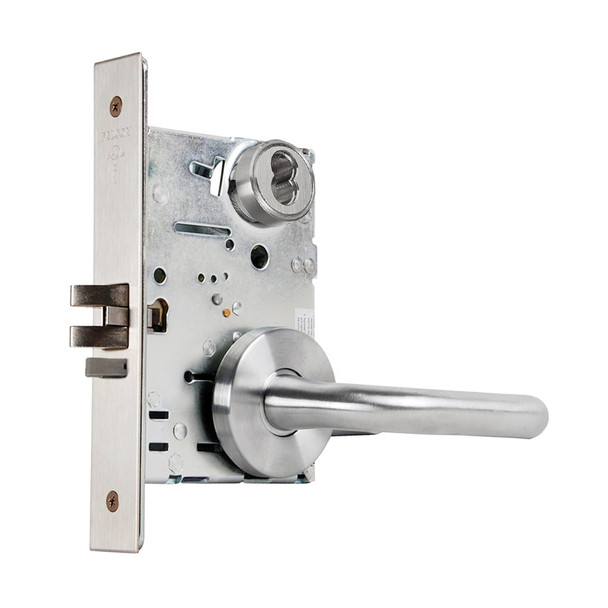

The Falcon MA561B SG 626 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. Its heavy-duty construction withstands constant use without fail, while the interchangeable core design enables fast re-keying and works with SFIC products from other manufacturers.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" and features a 2-3/4" backset. As an authorized Allegion dealer, E.D. Locks offers expert guidance on handing options, keying configurations, and electrified function availability. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance selecting the right configuration for your project.
Specifications
- Brand: Falcon
- Model: MA561B SG 626
- Type: Mortise Lock
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard cylinder; A keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
