Description

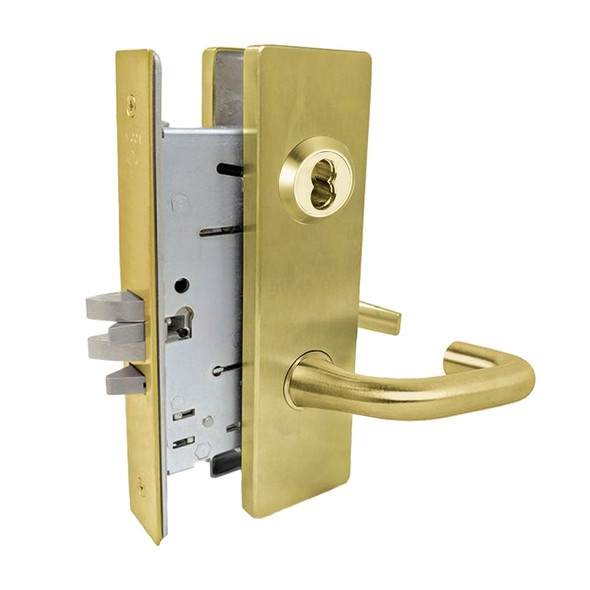

The Falcon MA561B is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock delivers reliable security and durability for constant-use applications, featuring a two-piece stainless steel latch bolt, 1-inch throw deadbolt with saw-resistant rollers, and cold-formed steel construction that withstands years of demanding use.
The MA561B accommodates door thicknesses from 1-3/8" to 2-1/2" and includes an interchangeable core (SFIC compatible) for quick re-keying without removing the lock body. Backset is 2-3/4" only; right-hand handing is standard with left-hand available. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified functions (12/24 VDC available), and to ensure proper compatibility with your door and frame.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/8" only
- Latch Bolt: 3/4" projection, stainless steel, mechanical anti-friction
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" (standard cylinder) or "A" (I/C cylinder)
- Handing: Right-hand standard, left-hand optional, reversible in field
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- ANSI/BHMA: Series 1000 (156.13)
- UL: 3 hour A label
- Electrified Functions: 12 or 24 VDC available
