Description

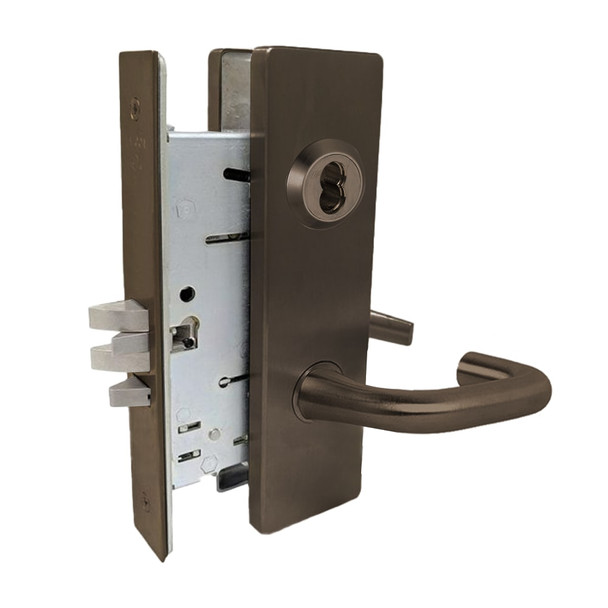

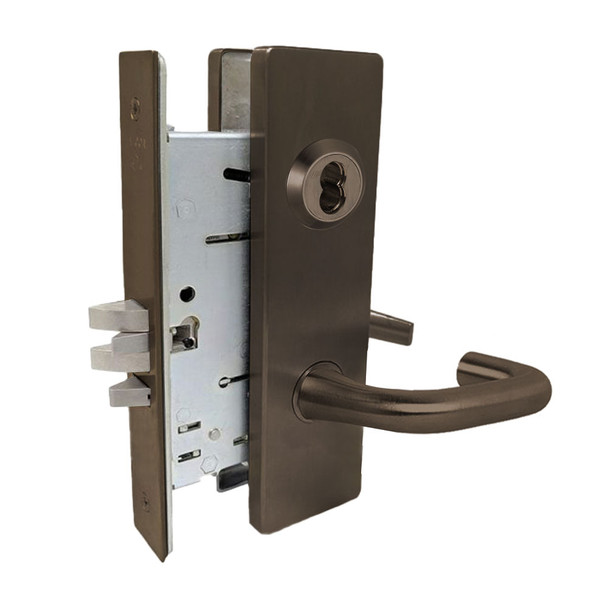

The Falcon MA561B mortise lock delivers high-performance security for commercial environments including offices, hospitals, and educational facilities. Built tough for constant use, this ANSI/BHMA Series 1000 lock features a mechanical anti-friction latch bolt and 1-inch throw dead bolt with saw-resistant rollers, ideal for facilities managers seeking dependable access control without compromise.
The MA561B accommodates doors 1-3/8" to 2-1/2" thick with 2-3/4" backset and supports SFIC interchangeable cores for quick re-keying. Furnished with two nickel silver keys and available in multiple finishes and electrified options. As an authorized Falcon dealer, E.D. Locks provides expert guidance and fast shipping. Contact sales@edlocks.com or 1-877-207-6067 for keying assistance and compatibility questions.
Specifications
- Brand: Falcon
- Model: MA561B
- Finish: Satin Nickel (613)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin I/C available
- Keyways: G keyway standard; A keyway on I/C cylinder
- Handing: Right hand standard, left hand optional, reversible
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Includes: Two nickel silver keys
