Description

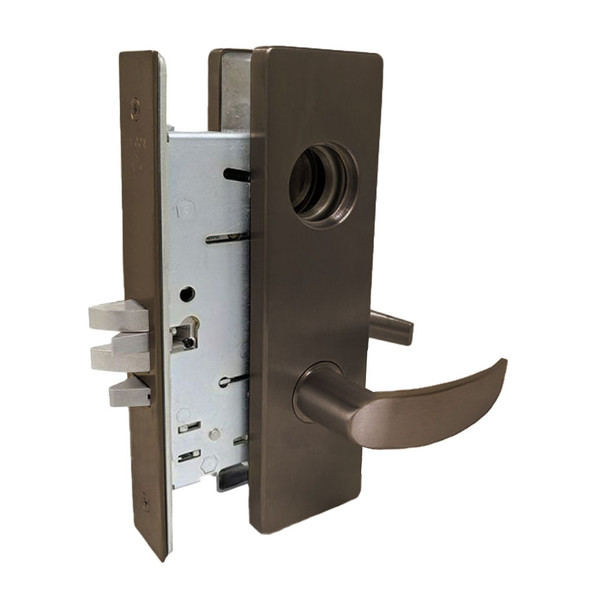

The Falcon MA561L mortise lock delivers high-performance security for commercial offices, hospitals, educational facilities, and similar environments. Built for constant use, this dependable lock combines robust construction with affordability, featuring an interchangeable core for quick re-keying and compatibility with SFIC products from other manufacturers.
The MA561L accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour A ratings. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying, and electrified options (12 or 24 VDC available). Contact sales@edlocks.com or call 1-877-207-6067 for personalized support and specifications.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G (standard cylinder), A (I.C. cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: 12 or 24 VDC available
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
