Description

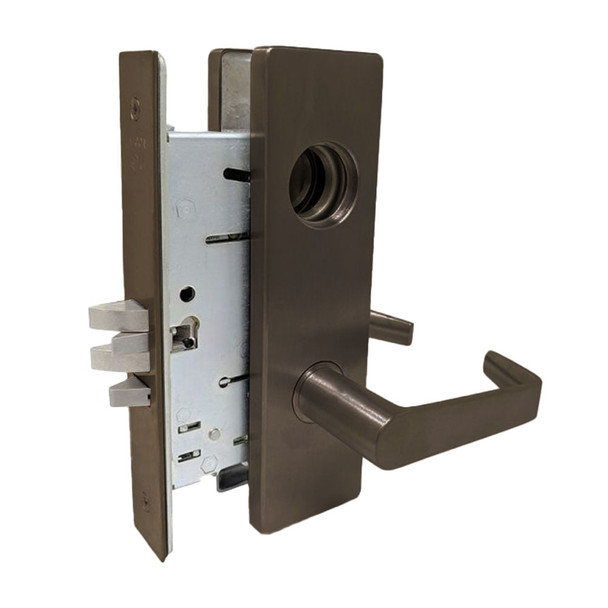

The Falcon MA561L DN 613 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable, affordable security solution features an interchangeable core for quick re-keying and SFIC compatibility, making it ideal for facilities requiring flexible key management without lock replacement.
The MA561L accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour fire ratings. As an authorized Falcon dealer, E.D. Locks provides expert installation guidance, keying assistance, and access to electrified options. Contact sales@edlocks.com or call 1-877-207-6067 for specification details and fast shipping on orders over $450.
Specifications
- Brand: Falcon
- Model: MA561L DN 613
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Cylinders: 5, 6, or 7-pin solid brass (standard or interchangeable core)
- Keyways: "G" (standard) or "A" (interchangeable core)
- Handing: Right hand standard, left hand optional, field reversible
- ANSI/BHMA: Series 1000
- UL: 3-hour A label
- Electrified: 12 or 24 VDC options available
