Description

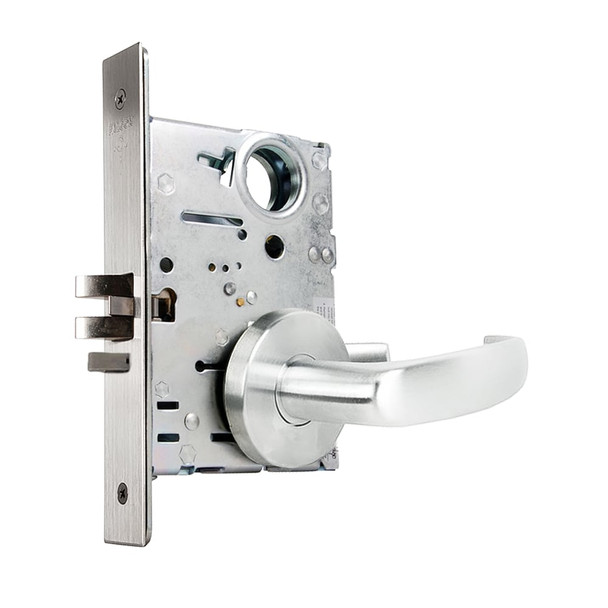

The Falcon MA561L QG 625 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic commercial spaces. This heavy-duty lock combines security with reliability, featuring a two-piece stainless steel latch bolt, 1-inch throw deadbolt with saw-resistant rollers, and cold-formed steel construction designed to withstand constant use without failure.
The MA561L accommodates door thicknesses from 1-3/8 to 2-1/2 inches with a 2-3/4 inch backset and includes an interchangeable SFIC core for quick re-keying. It meets ANSI/BHMA Series 1000 and carries a 3-hour UL label. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, handing, and electrified configurations. Contact sales@edlocks.com or call 1-877-207-6067 for specification details and fast delivery.
Specifications
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw with saw-resistant rollers
- Faceplates: 1-1/4 x 8 inch brass or stainless steel
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: 156.13 Series 1000
- UL: 3 hour A label
