Description

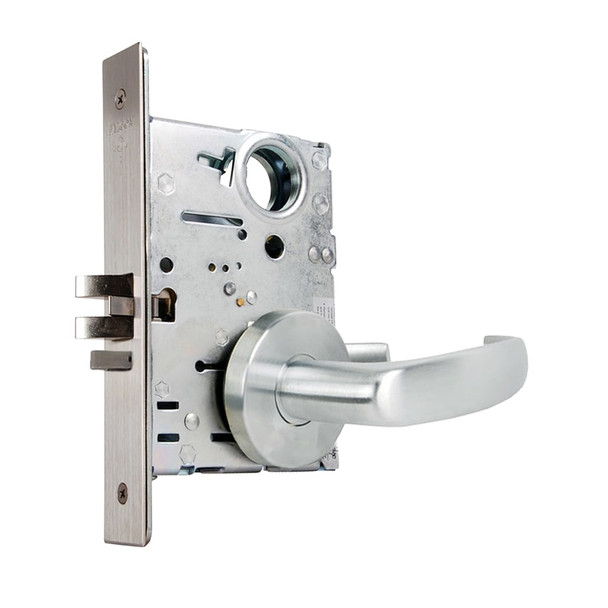

The Falcon MA561L QG 626 is a commercial mortise lock designed for offices, hospitals, education facilities, and other high-traffic environments. Built for durability and security, this ANSI/BHMA Series 1000 lock withstands constant use without failure. Its interchangeable core allows quick field re-keying and works with SFIC products from other manufacturers, reducing long-term maintenance costs.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. It features a stainless steel deadbolt with saw-resistant rollers and mechanical anti-friction latch bolt. Available in right or left hand, reversible in the field. For expert guidance on keying, finish selection, or electrified options, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA561L QG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: 3/4" projection, stainless steel
- Deadbolt: 1" throw, stainless steel with 13/16" hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keys: Two nickel silver keys standard
- Handing: Right hand standard; left hand optional, reversible in field
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13 Series 1000
- UL: 3 hour A label
