Description

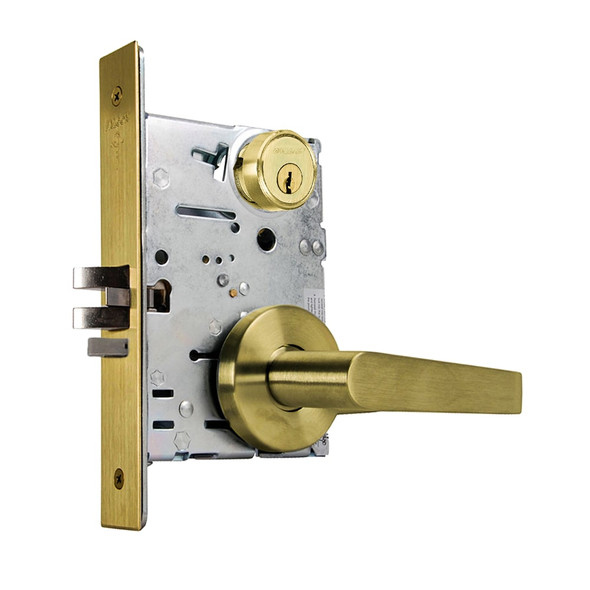

The Falcon MA561P AG 606 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. This Series 1000 ANSI/BHMA-rated lock combines a mechanical anti-friction latch with a 1-inch dead bolt featuring saw-resistant rollers, delivering reliable security and durability for doors accommodating 1-3/8" to 2-1/2" thickness.
The MA561P features an interchangeable core (SFIC-compatible) for quick field re-keying and comes with two nickel silver keys. It's reversible in the field and available in 12 or 24 VDC electrified options. As an authorized Falcon dealer, E.D. Locks & Security provides expert guidance on keying, installation, and compatibility questions. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for personalized support.
Specifications
- Brand: Falcon
- Model: MA561P AG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin options
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed
- Keying: G keyway standard (standard cylinder), A keyway (I/C cylinder)
- Finish Options: Per Falcon Finishes Chart
- Electrified: Available in 12 or 24 VDC
- Compliance: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
- Handing: Right-hand standard, left-hand optional, field-reversible
