Description

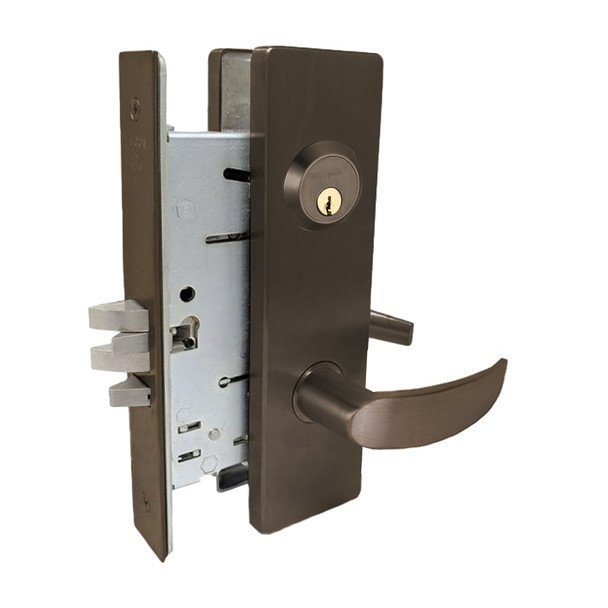

The Falcon MA561P mortise lock is a high-performance, affordable security solution for commercial offices, hospitals, education facilities, and institutional projects. Built to withstand constant heavy use, this dependable lock features an interchangeable core for quick re-keying and works with SFIC products from other manufacturers, backed by Allegion's trusted reputation.
Compatible with door thicknesses of 1-3/8" to 2-1/2" and standard 2-3/4" backset, the MA561P is reversible in the field for flexible installation. As an authorized Falcon dealer, E.D. Locks provides expert consultation and support at sales@edlocks.com or 1-877-207-6067 to ensure proper specification and installation for your security needs.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" standard cylinder, "A" interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: 156.13 Series 1000
- UL: 3 hour A label
