Description

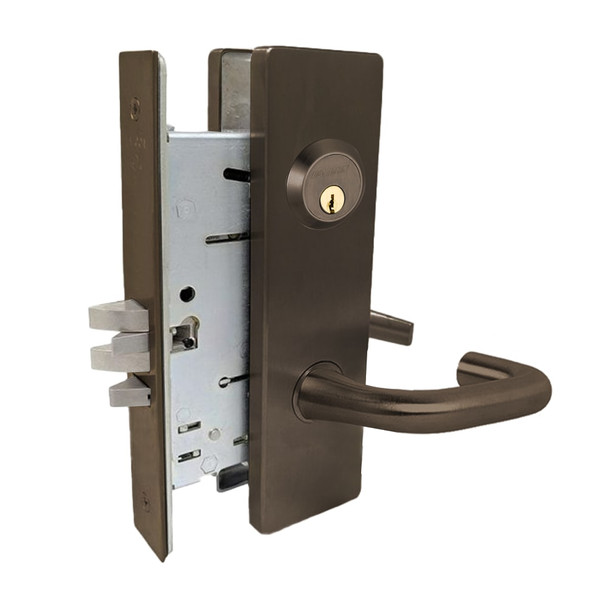

The Falcon MA561P is a commercial mortise lock built for high-traffic office, hospital, and educational facilities. This durable SFIC interchangeable core lock combines security and reliability with easy field re-keying, making it ideal for organizations managing multiple doors and frequent access changes.
The MA561P fits standard door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 standards with a 3-hour UL A fire rating. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying options, handing, and electrified configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support and competitive pricing on bulk orders.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Dead Bolt: 1" throw with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Strike: Brass or stainless steel, meets ANSI A115.1
- Keyways: G keyway standard cylinder, A keyway IC cylinder
