Description

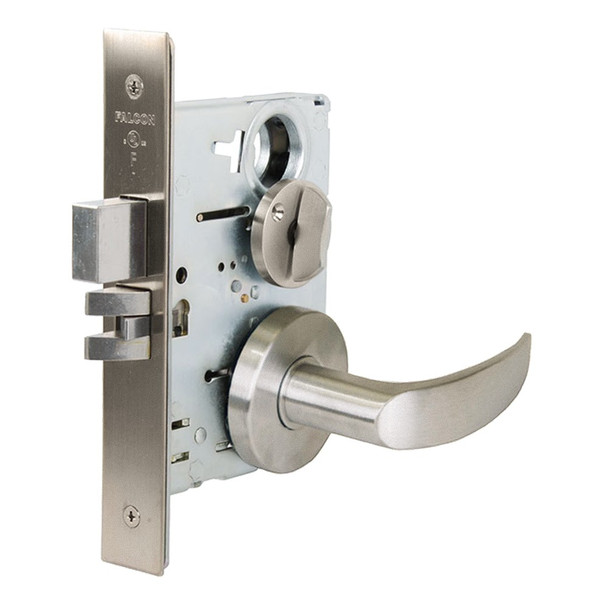

The Falcon MA571B AG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable, dependable lock handles constant use without fail, featuring an interchangeable core for quick re-keying and SFIC compatibility. It delivers security and performance at an affordable price point backed by Allegion's reputation.
The MA571B accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour standards. Right-hand handing is standard; left-hand and field-reversible options are available. For specification details, keying options, finish selection, and expert installation guidance, contact E.D. Locks sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway standard I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label; ANSI A115.1
