Description

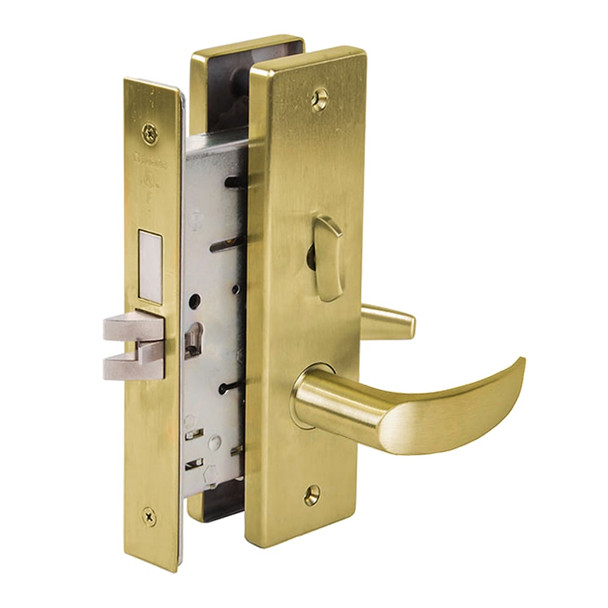

The Falcon MA571B mortise lock delivers high-performance security for commercial office, hospital, education, and institutional doors. Built for constant use, this Series 1000 lock features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers. The interchangeable core (SFIC-compatible) enables quick re-keying without removing the lock body, reducing downtime and maintenance costs.
Fits standard door thickness of 1-3/8" to 2-1/2" with fixed 2-3/4" backset. Right-hand handing is standard; left-hand and field reversibility available. Available in 12 or 24 VDC electrified functions. Contact an authorized Falcon dealer at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571B AN 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Standard Keyways: G keyway (standard cylinder); A keyway (IC cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
