Description

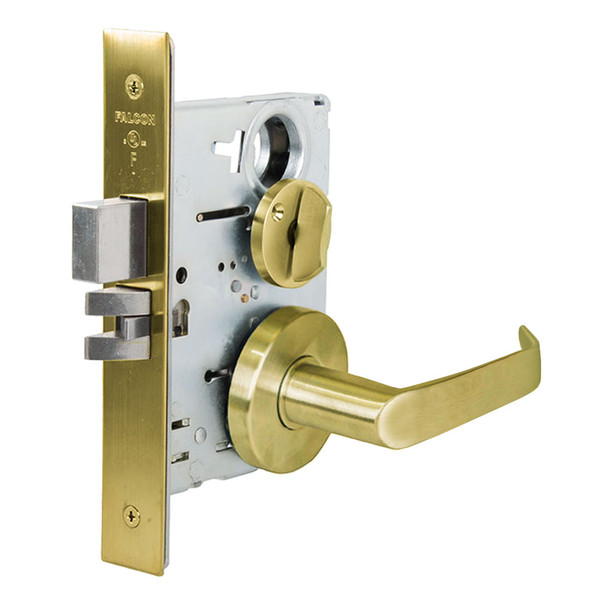

The Falcon MA571B DG 606 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This ANSI/BHMA Series 1000 lock combines security with durability, featuring a mechanical anti-friction latch bolt and a 1-inch stainless steel deadbolt with saw-resistant rollers. Its interchangeable core design enables quick field re-keying without removing the lock body.
The MA571B fits standard door thickness (1-3/8" to 2-1/2") with a 2-3/4" backset and is available in right or left hand, reversible in the field. SFIC-compatible cylinders support 5, 6, or 7-pin configurations. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, finish selection, and electrified upgrades. Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571B DG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" standard (standard cylinder), "A" standard (I.C. cylinder)
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
