Description

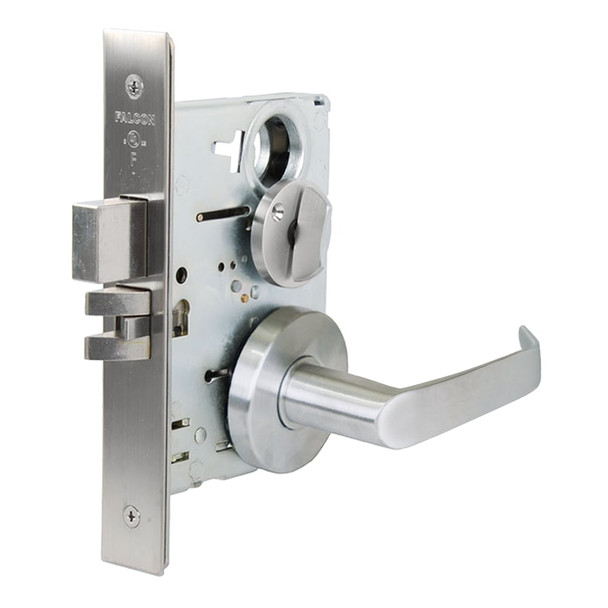

The Falcon MA571B DG 626 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This ANSI/BHMA Series 1000 lock combines security with durability, featuring a stainless steel latch bolt with mechanical anti-friction design and a 1-inch dead bolt with saw-resistant rollers. Built to withstand constant use without compromise, it solves the need for reliable access control in demanding institutional settings.
Compatible with standard door thicknesses of 1 3/8 inch to 2 1/2 inch and 2 3/4 inch backset, the MA571B accepts SFIC interchangeable cores for tool-free re-keying and works with standard or optional keyways. Choose satin stainless finish (626) for corrosion resistance. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, cylinder selection, and electrified upgrades. Contact sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- Brand: Falcon
- Model: MA571B
- Finish: Satin Stainless Steel (626)
- Door Thickness: 1 3/8 inch to 2 1/2 inch
- Backset: 2 3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with hardened steel rollers
- Faceplates: 1 1/4 inch x 8 inch, adjustable for door bevel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin SFIC interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (IC cylinder)
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
