Description

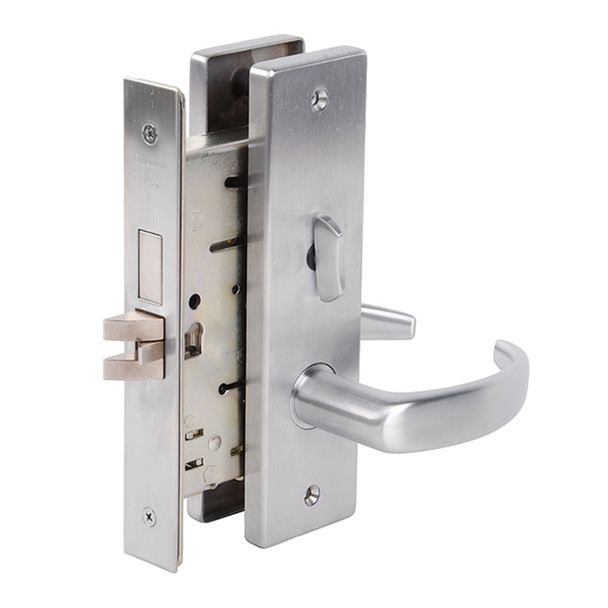

The Falcon MA571B QN 626 is a heavy-duty mortise lock designed for commercial buildings including offices, hospitals, and educational facilities. This durable lock features an interchangeable core for quick re-keying, a mechanical anti-friction latch bolt, and a 1-inch dead bolt with saw-resistant rollers. It solves security and convenience challenges in high-traffic environments.
The MA571B accommodates doors 1-3/8 to 2-1/2 inches thick with a 2-3/4-inch backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour fire ratings. SFIC-compatible cores simplify maintenance and rekeying. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keyways, and electrified options. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Door thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inches only
- Case: Cold-formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway standard cylinder, A keyway I/C cylinder
- Latch bolt: Two-piece stainless steel, 3/4 inch projection
- Dead bolt: 1 inch throw, stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4 x 8 inches, brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: 156.13 Series 1000
- UL Rating: 3-hour A label
