Description

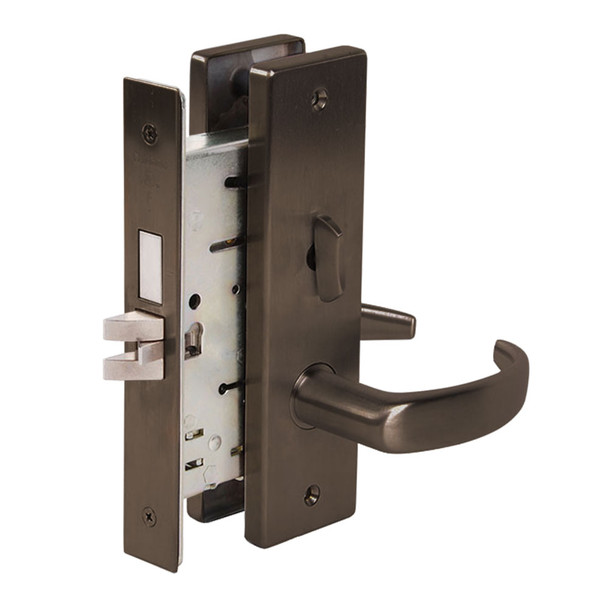

The Falcon MA571B QN 613 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This ANSI/BHMA Series 1000 lock combines security with durability, featuring a 1-inch throw deadbolt with saw-resistant rollers and a mechanical anti-friction latch. Built for constant use without compromise, it solves the need for reliable access control in demanding commercial settings.
Compatible with standard 1-3/8" to 2-1/2" door thickness and featuring an interchangeable core for easy re-keying, this lock meets ANSI A115.1 strike standards and carries a 3-hour UL label. The QN 613 finish offers corrosion resistance. As an authorized Falcon dealer, E.D. Locks provides expert specification guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper installation and performance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinder: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Faceplates: 1-1/4" x 8" brass or stainless steel
- ANSI/BHMA: Series 1000, meets ANSI A115.1
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Furnished: Two nickel silver keys standard
