Description

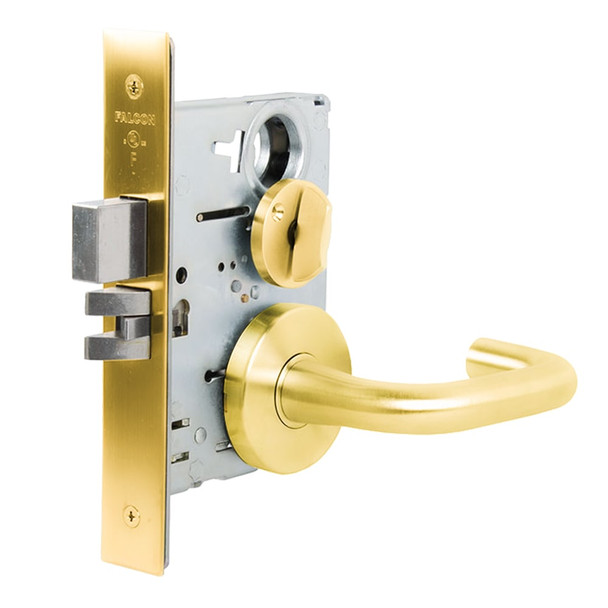

The Falcon MA571B mortise lock is a heavy-duty commercial solution for offices, hospitals, educational facilities, and other institutional buildings. This Series 1000 lock combines security with durability, engineered to withstand constant daily use without compromising performance. Its interchangeable core design allows quick re-keying and compatibility with SFIC products from other manufacturers.
Fits standard door thicknesses from 1-3/8" to 2-1/2" with 2-3/4" backset. Features a 1" throw deadbolt with saw-resistant rollers and two-piece stainless steel latch bolt. UL 3-hour A rated and ANSI/BHMA 156.13 Series 1000 certified. Contact E.D. Locks' expert team at sales@edlocks.com or 1-877-207-6067 for keying options, electrified configurations, and installation support.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch bolt: 3/4" projection, two-piece stainless steel
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored
- Handing: Right hand standard; left hand and field-reversible options
- Electrified: 12 or 24 VDC available
- UL: 3 hour A label
- ANSI/BHMA: 156.13, Series 1000
