Description

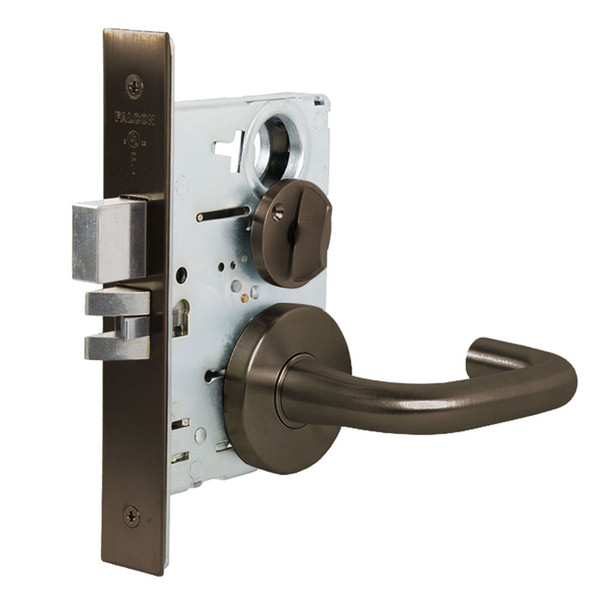

The Falcon MA571B mortise lock is a heavy-duty commercial solution for offices, hospitals, and educational facilities requiring dependable security and frequent access control. This ANSI/BHMA Series 1000 lock features a mechanical anti-friction latch and saw-resistant dead bolt, making it ideal for high-traffic environments where performance and reliability matter.
The MA571B accommodates standard door thicknesses of 1-3/8" to 2-1/2" and includes an interchangeable core for quick re-keying without lock removal. Compatible with SFIC products from other manufacturers, it's backed by Allegion's reputation for quality. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin I/C
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- ANSI/BHMA: Series 1000 (156.13)
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Handing: Right hand standard, left hand optional, reversible
