Description
The Falcon MA Series mortise lock delivers high-performance security for commercial offices, hospitals, educational facilities, and similar environments requiring dependable access control. Built tough for constant use, this ANSI/BHMA Series 1000 lock features a mechanical anti-friction latch bolt and a 1-inch throw deadbolt with saw-resistant rollers, making it one of Falcon's most trusted solutions.
This lock accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and comes standard right-hand, reversible in the field. The interchangeable core accepts SFIC cylinders for quick re-keying without lock removal. Available in 6 or 7-pin configurations with "A" keyway. For compatibility confirmation and expert keying guidance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon

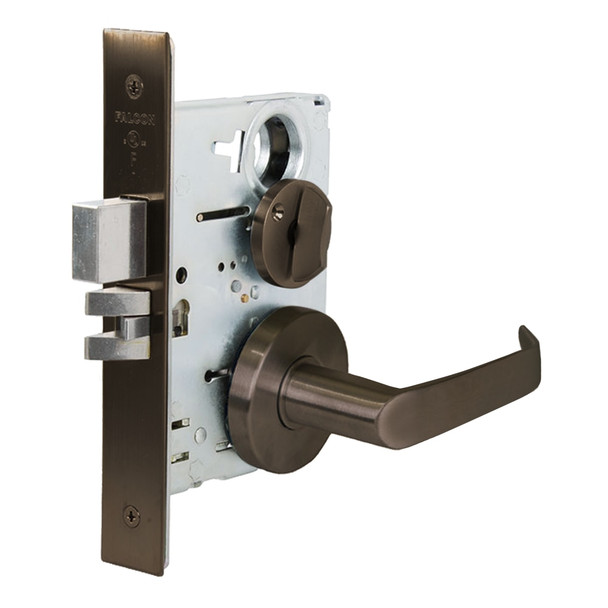

- Model: MA571CP6 DG 613
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Cylinders: 6 or 7-pin interchangeable core
- Keyway: "A" keyway standard on IC cylinder
- Handing: Right hand standard, reversible
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available in 12 or 24 VDC
