Description

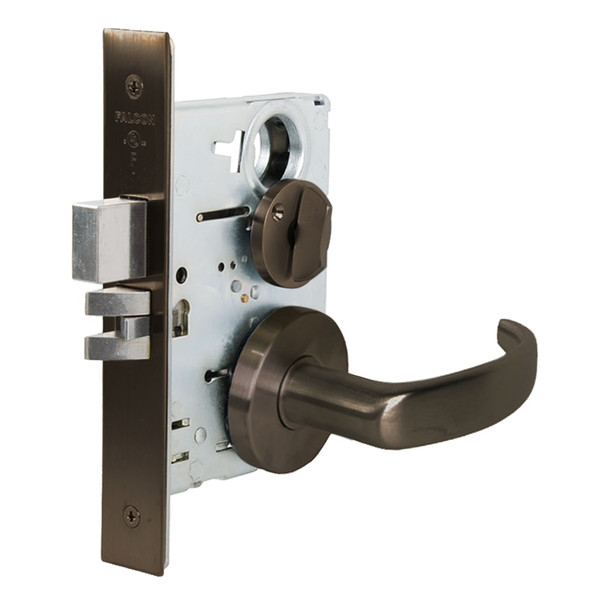

The Falcon MA571CP6 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. Built on Falcon's reputation for durability, this Series 1000 lock withstands constant use while offering security and reliability. The interchangeable core design enables fast re-keying without removing the lock from the door.
Compatible with standard door frames (1-3/8" to 2-1/2" thickness) and SFIC products from other manufacturers, the MA571CP6 installs with a 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, finish selection, and electrified configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571CP6 QG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 6-pin standard on interchangeable core
- Keyway: G (standard), A (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable bevel
- ANSI/BHMA Rating: 156.13 Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Handing: Right hand standard, left hand optional, reversible
- Includes: Two nickel silver keys
