Description

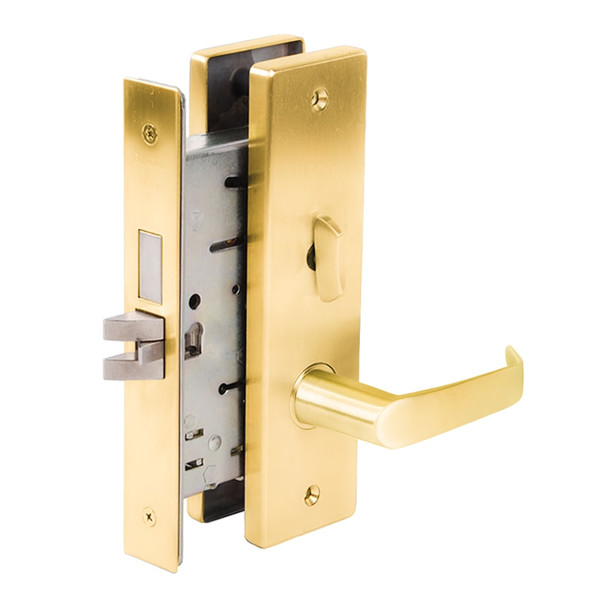

The Falcon MA571L DN 605 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. Its two-piece stainless steel latch bolt and anti-friction design withstand constant use without fail, while the saw-resistant roller dead bolt with 1-inch throw delivers reliable security for high-traffic doors.
This lock accommodates door thickness from 1-3/8" to 2-1/2" and features an interchangeable core (SFIC compatible) for quick re-keying without removing the lock body. Available in 12 or 24 VDC electrified versions and meeting ANSI/BHMA Series 1000 and UL 3-hour label standards. Contact an E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for handing, keyway, and finish selection guidance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Includes: Two nickel silver keys
