Description

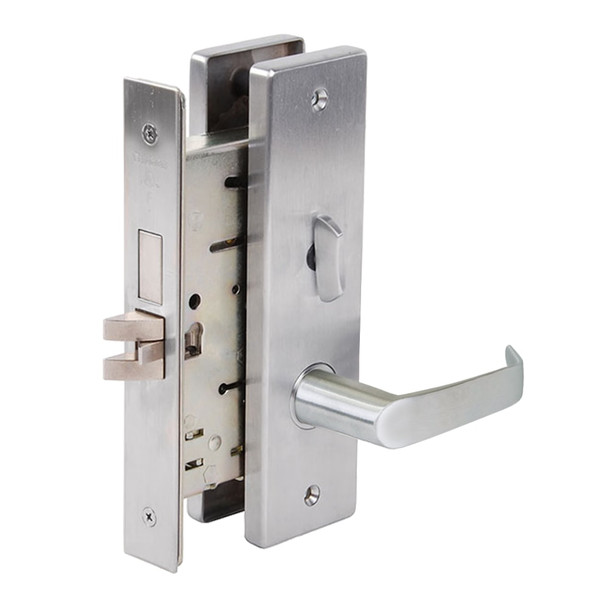

The Falcon MA571L DN 626 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. It combines dependable security with interchangeable core (SFIC) technology for fast re-keying, eliminating costly lock replacement and reducing downtime in demanding facilities.
This lock fits standard 1-3/8" to 2-1/2" door thickness and features a mechanical anti-friction latch and saw-resistant roller deadbolt. As an authorized Falcon dealer, E.D. Locks provides expert keying assistance, compatibility guidance, and electrified options. Call 1-877-207-6067 or email sales@edlocks.com for application support.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I.C. cylinder)
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
