Description

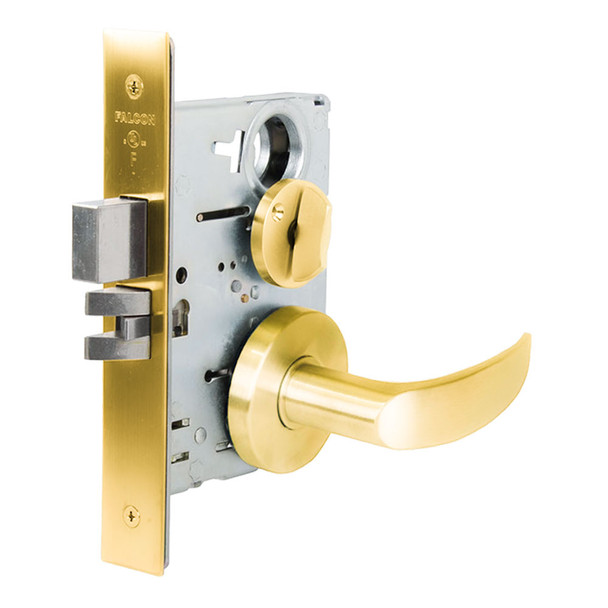

The Falcon MA571P AG 605 is a commercial-grade mortise lock engineered for offices, hospitals, schools, and other demanding environments. Built on Falcon's proven MA Series platform, this lock combines security with durability to handle constant daily use without compromise. Its interchangeable core design enables quick re-keying in the field, reducing downtime and maintenance costs.
The MA571P accommodates door thicknesses from 1-3/8" to 2-1/2" and features ANSI/BHMA Series 1000 certification with a 3-hour A UL label. Compatible with SFIC products from other manufacturers, it arrives with two nickel silver keys and reversible handing. As an authorized Falcon dealer, E.D. Locks offers expert guidance on installation, keying, and specification matching. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA571P AG 605
- Type: Mortise Lock
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" standard cylinder, "A" interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified: Available 12 or 24 VDC
- Handing: Right hand standard, left hand optional, reversible
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Included: Two nickel silver keys
