Description

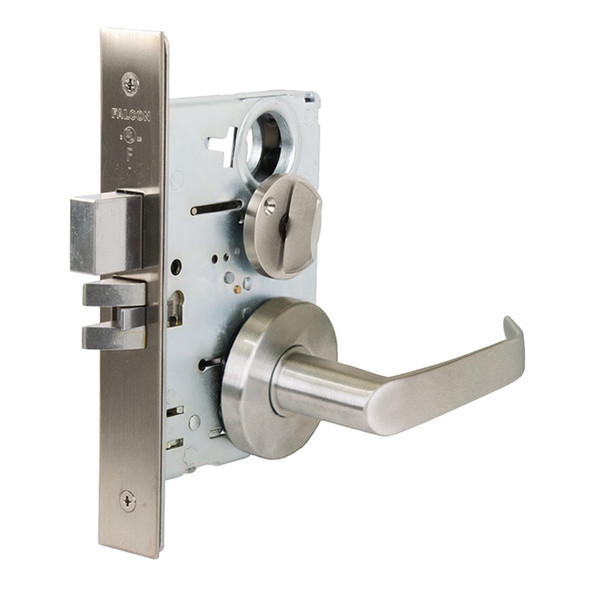

The Falcon MA571P is a commercial mortise lock engineered for high-traffic office, hospital, and educational environments. This ANSI/BHMA Series 1000 lock combines dependable security with interchangeable core (IC) technology, enabling fast re-keying without removing the lock body. Its two-piece stainless steel latch, saw-resistant rollers, and cold-formed steel case withstand constant use in demanding applications.
The MA571P accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible in the field for flexible installation. As an authorized Falcon dealer, E.D. Locks ensures expert guidance on keying options, electrified functions (12/24 VDC available), and SFIC compatibility. Call 1-877-207-6067 or email sales@edlocks.com for technical support and fastest delivery.
Specifications
- Brand: Falcon
- Model: MA571P DG 605
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinder: Solid brass, 6 or 7-pin on IC
- Keyways: G (standard cylinder), A (IC cylinder)
- Handing: Right hand standard, left hand optional, reversible
- ANSI/BHMA: Series 1000 (156.13)
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Finish: DG (Dark Oxidized Satin Bronze)
