Description

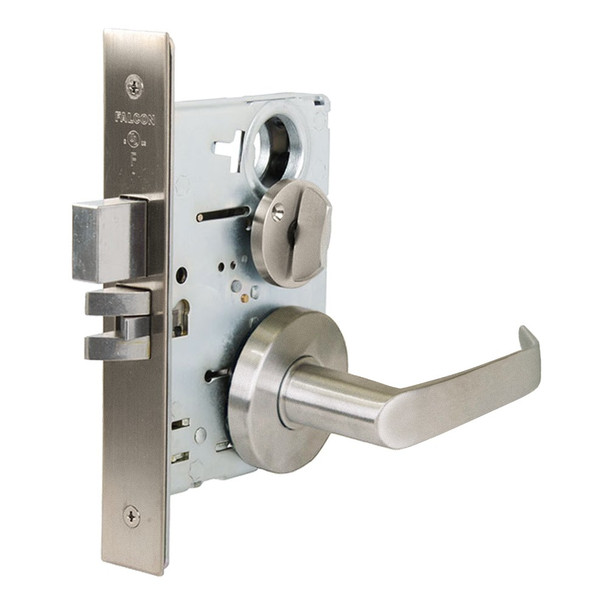

The Falcon MA571P DG 630 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. It combines reliable security with affordability, featuring a two-piece stainless steel latch bolt, anti-friction design, and a 1-inch throw dead bolt with saw-resistant rollers. Built to withstand constant use without compromise.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and features an interchangeable core (SFIC compatible) for quick re-keying. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying, and electrified options. Contact sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with 13/16" hardened steel saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G (standard cylinder) or A (I/C cylinder)
- Faceplate: 1-1/4" x 8" brass or stainless steel, armored front
- Handing: Right hand standard, left hand optional, field reversible
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
