Description

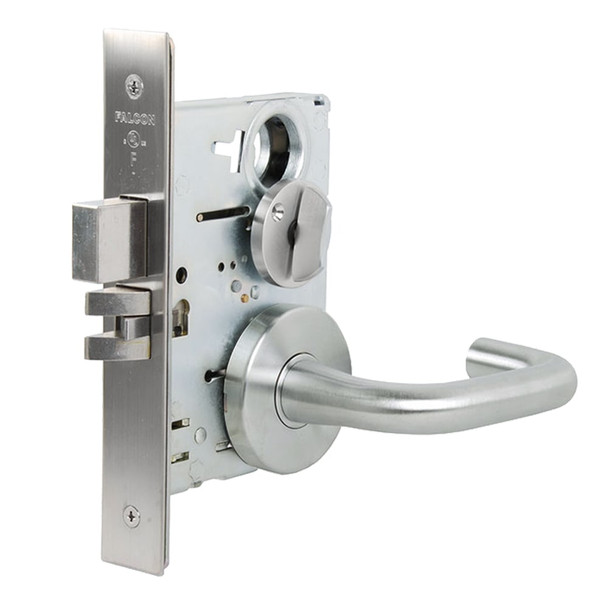

The Falcon MA571P SG 626 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This ANSI/BHMA Series 1000 lock combines robust construction with interchangeable core convenience, delivering dependable security and smooth operation through years of constant use without compromise.
Fits standard doors 1-3/8" to 2-1/2" thick with 2-3/4" backset and accepts SFIC interchangeable cores for quick re-keying. Backed by Allegion, a leader in access solutions. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, handing specifications, and expert installation support.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Dead bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Strike: Brass or stainless steel, non-handed
- Electrified functions: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
