Description

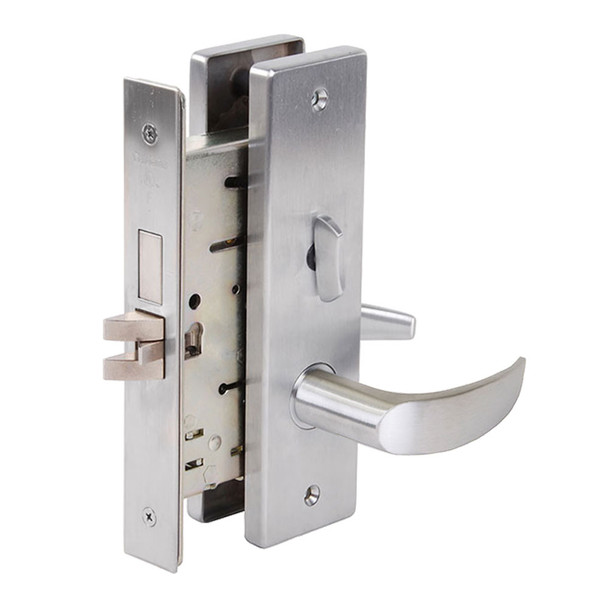

The Falcon MA571P AN 626 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This ANSI/BHMA Series 1000 lock combines a 1-inch deadbolt with stainless steel latch and saw-resistant rollers, delivering durability and security for doors 1-3/8" to 2-1/2" thick without compromise.
The interchangeable core design enables quick re-keying and works with standard SFIC cylinders; 2-3/4" backset, satin chrome finish, and mechanical anti-friction latch ensure reliable performance. As an authorized Falcon dealer, E.D. Locks provides expert specification assistance and keying support. Contact sales@edlocks.com or 1-877-207-6067 to verify compatibility and arrange installation guidance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyways: G keyway standard (A keyway on I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with 13/16" hardened steel rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for bevel
- Trim: Heavy-duty through-bolted inserts with 8-32 screws
- ANSI/BHMA: Meets 156.13 Series 1000
- UL: 3 hour A label
- Electrified: Available in 12 or 24 VDC
