Description

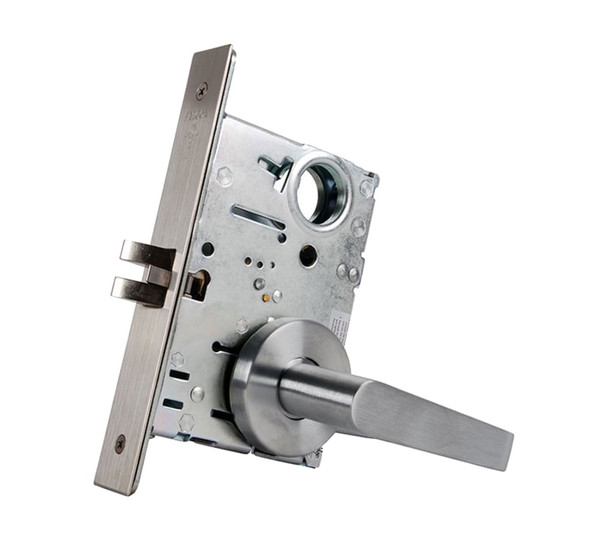

The Falcon MA621B DG 630 is a high-performance mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built for constant use without failure, this Series 1000 lock features an interchangeable core for quick re-keying and SFIC compatibility. It solves the need for reliable, retrofit-friendly security on standard interior and exterior doors.
The MA621B accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and installs with heavy-duty through-bolted trim for proper alignment. Available in 12 or 24 VDC electrified functions and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, handing selection, and expert installation guidance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" standard (standard cylinder), "A" standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
