Description

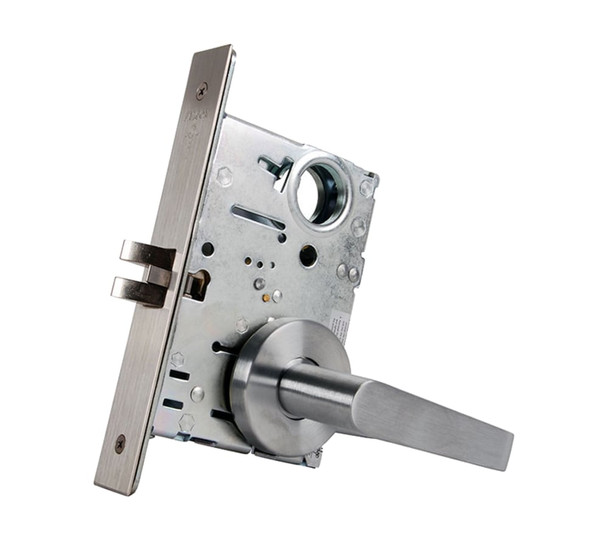

The Falcon MA621L DG 613 is a heavy-duty mortise lock designed for high-traffic commercial environments including offices, hospitals, and educational facilities. Built on the proven MA Series platform, this lock combines dependable security with interchangeable core technology for simplified re-keying and maintenance in demanding institutional applications.
This lock accommodates standard door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards and UL 3-hour A label requirements. The interchangeable core accepts SFIC cylinders from other manufacturers. For expert guidance on keying options, handing, electrified configurations, or finish selection, contact E.D. Locks' authorized Allegion team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder, A keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
