Description

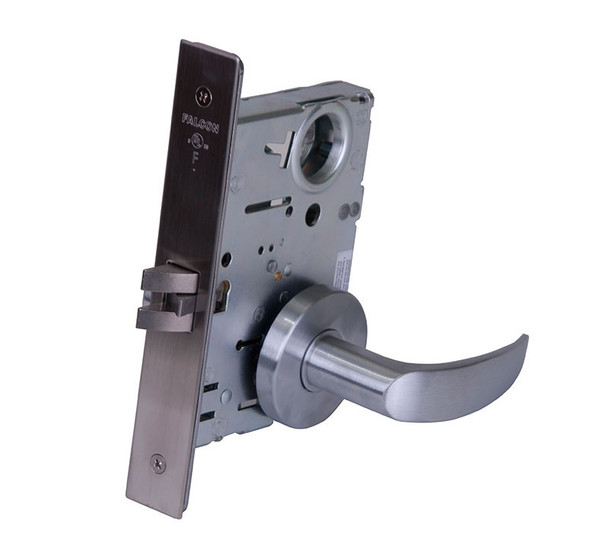

The Falcon MA621P AN 626 is a commercial-grade mortise lock engineered for offices, hospitals, educational facilities, and high-traffic institutional buildings. Built for durability and reliability, this Series 1000 lock features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1 inch dead bolt with saw-resistant rollers, delivering dependable security through constant daily use.
Designed to fit standard door thickness of 1 3/8 inch to 2 1/2 inch with a 2 3/4 inch backset, this mortise lock accepts SFIC interchangeable cores for quick field re-keying and is compatible with products from other manufacturers. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and installation support. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for configuration assistance.
Specifications
- Brand: Falcon
- Model: MA621P AN 626
- Lock Type: Mortise, Series 1000
- Door Thickness: 1 3/8 inch to 2 1/2 inch
- Backset: 2 3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with hardened steel rollers
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin on I.C. core
- Keyway: G keyway standard cylinder, A keyway I.C. cylinder
- Handing: Right hand standard, left hand optional, reversible in field
- Faceplates: 1 1/4 inch x 8 inch, brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
