Description

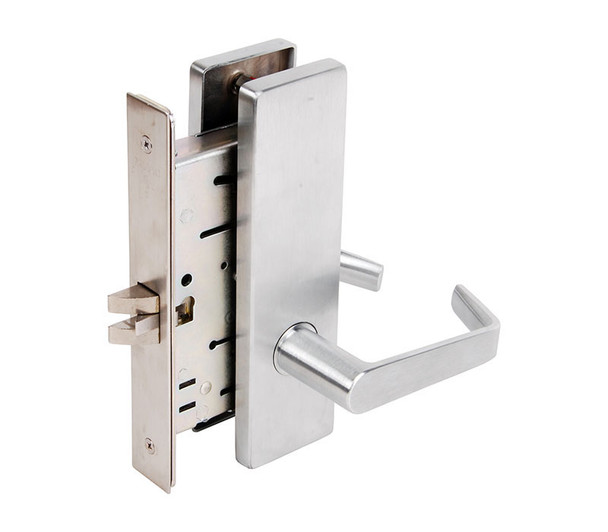

The Falcon MA621P DN 613 is a commercial-grade mortise lock designed for offices, hospitals, educational facilities, and high-traffic institutional buildings. Built from cold-formed steel with hardened steel components, it delivers dependable security and withstands constant daily use without failure. The interchangeable core (SFIC) allows quick, tool-free re-keying and is compatible with cores from other manufacturers.
This lock fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards. It features a 1" throw dead bolt with saw-resistant rollers and a 3/4" latch projection. Available in 12 or 24 VDC electrified versions. As an authorized Falcon dealer, E.D. Locks provides expert sizing, keying, and installation guidance. Contact sales@edlocks.com or 1-877-207-6067 for compatibility questions or to arrange re-keying before shipment.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and field-reversible options available
- Cylinders: Solid brass, 6 or 7-pin available on interchangeable core
- Keyways: "A" keyway standard on I/C cylinder
- Keys Furnished: Two nickel silver keys standard
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI AII5.1
- ANSI/BHMA Rating: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Options: 12 or 24 VDC available
