Description

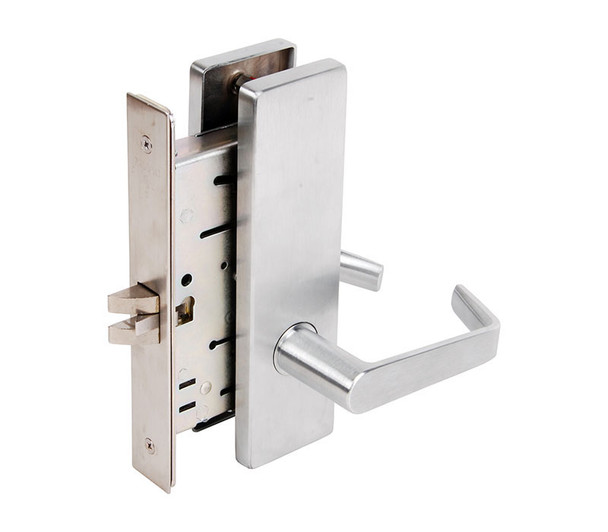

The Falcon MA641P DN 613 is a heavy-duty mortise lock designed for commercial facilities including offices, hospitals, and educational institutions. Built for constant use, this Series 1000 lock features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1 inch throw dead bolt with saw-resistant rollers, providing dependable security and durability.
This lock accommodates door thicknesses from 1-3/8 inch to 2-1/2 inch and ships with an interchangeable core (SFIC compatible) for quick re-keying without removing the lock body. Right hand is standard; left hand is available and reversible in field. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance.
Specifications
- Brand: Falcon
- Model: MA641P DN 613
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" diameter hardened steel saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on I/C cylinder
- Keyways: "G" keyway standard on standard cylinder; "A" keyway standard on I/C cylinder
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
- Handing: Right hand standard; left hand optional, reversible in field
