Description

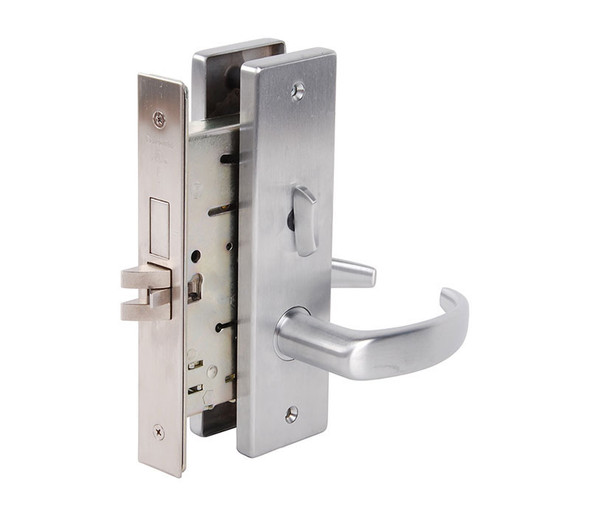

The Falcon MA641B QN 605 is a high-performance mortise lock built for commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design allows quick re-keying without removing the lock, while the two-piece stainless steel latch bolt and saw-resistant roller dead bolt deliver dependable security through constant daily use.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and is reversible in the field for flexible installation. As an authorized Falcon dealer, E.D. Locks provides expert support and keying assistance at sales@edlocks.com or 1-877-207-6067 to ensure proper setup and long-term performance.
Specifications
- Brand: Falcon
- Model: MA641B QN 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Handing: Right hand standard, left hand optional, reversible
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
