Description

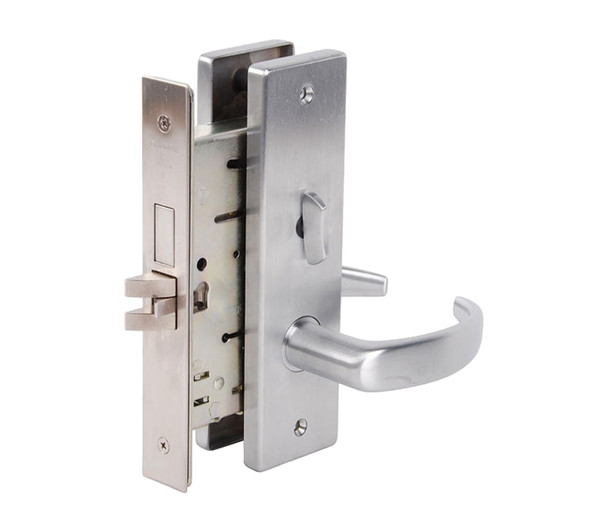

The Falcon MA641B QN 630 is a heavy-duty mortise lock built for commercial environments like offices, hospitals, and educational facilities. With an interchangeable SFIC core for quick re-keying, a stainless steel latch and dead bolt with saw-resistant rollers, and bind-resistant trim, this lock handles constant use reliably while simplifying maintenance and key management.
Compatible with standard 1-3/8" to 2-1/2" door thickness and available in right or left hand (field-reversible). The MA Series meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A ratings. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified functions, and finish selection.
Specifications
- Brand: Falcon
- Model: MA641B QN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard; A keyway on I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Finishes: Satin Nickel (630)
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Keys: Two nickel silver keys standard
- Handing: Right hand standard; left hand optional, field-reversible
