Description

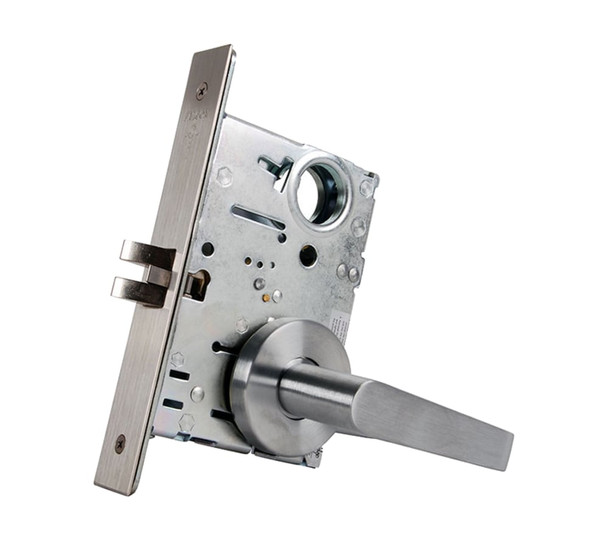

The Falcon MA641P mortise lock is a heavy-duty commercial solution for offices, hospitals, schools, and institutional buildings requiring reliable security and smooth operation under constant use. Its cold-formed steel construction with interchangeable core design enables quick re-keying and retrofit installations while maintaining compatibility with SFIC products from other manufacturers.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. Right-hand is standard; left-hand is optional and field-reversible. For help selecting the correct keyway, finish, or electrified option, contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA641P DG 605
- Type: Mortise Lock
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, field-reversible
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed
- ANSI/BHMA: 156.13 Series 1000
- UL Rating: 3-hour A label
- Electrified: Available 12 or 24 VDC
- Includes: Two nickel silver keys
