Description

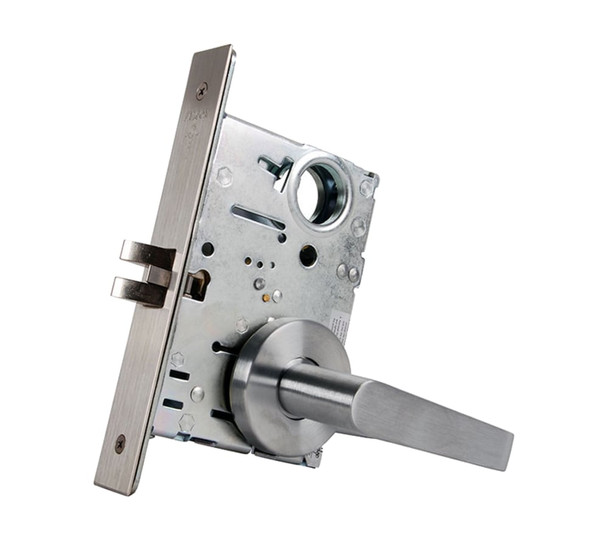

The Falcon MA641P DG 630 mortise lock delivers high-performance security for commercial offices, hospitals, educational facilities, and other demanding environments. Built tough for constant use, this Series 1000 lock features an interchangeable core design that simplifies re-keying and maintenance while remaining compatible with standard SFIC products.
Accommodates standard door thickness from 1 3/8" to 2 1/2" with a 2 3/4" backset. Right-hand handing is standard; left-hand and field-reversible options available. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, installation, and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA641P DG 630
- Door Thickness: 1 3/8" to 2 1/2"
- Backset: 2 3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keys: Two nickel silver keys standard
- Keyways: G keyway standard cylinder; A keyway I/C cylinder
- Handing: Right hand standard, left hand optional, field-reversible
- Faceplates: 1 1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Series 1000, meets 156.13
- UL Rating: 3 hour A label
