Description

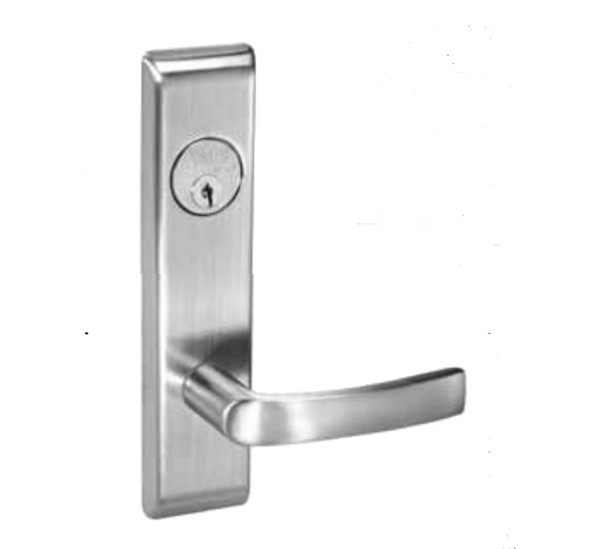

The Yale 8800 Series mortise lock trim pack is a Grade 1 commercial lock designed for demanding applications requiring maximum strength and security. Built for facilities managers and security professionals, it delivers reinforced stainless steel construction, field-reversible handing, and vandal-resistant trim to protect high-traffic doors from forced entry and wear.
This trim pack fits standard 1-3/4" doors and installs easily with quick lever handing and a non-handed strike. All Yale mortise locks are backed by expert technical support from E.D. Locks, an authorized dealer. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions, finish selection, or keying assistance before you order.
Specifications
- ANSI/BHMA A156.13 Certified, Grade 1
- UL/cUL Fire Rated up to 3 hours
- Windstorm Certified
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available)
- Fronts: Bevel front, free-floating, adjusts 0 to 1/8" in 2"
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" doors (other lengths available)
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
