Description

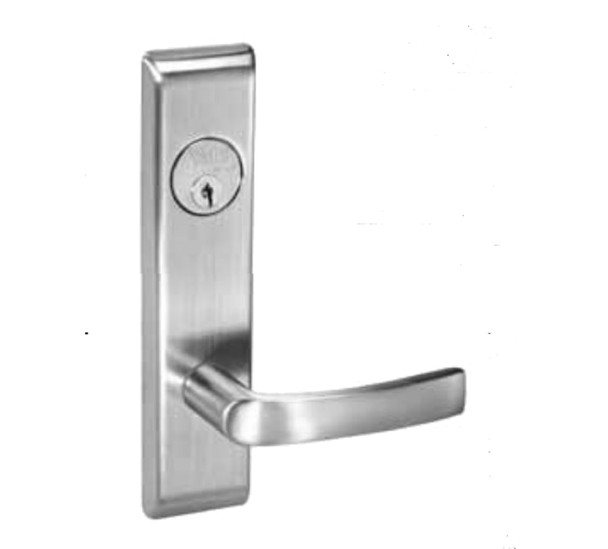

The Yale 8800 Series mortise lock is a heavy-duty commercial lock engineered for maximum security and durability. Designed for doors up to 3.25 inches thick, it features a reinforced stainless steel deadbolt, vandal-resistant trim, and ANSI/BHMA Grade 1 certification. Ideal for high-traffic commercial applications requiring long-lasting performance.
This lock is field-reversible with quick lever handing and a standard nonhanded strike for easy installation. The 2-3/4 inch backset and 3/4 inch stainless steel latchbolt provide reliable operation. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection from 17 available choices, and expert installation guidance.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4 inch
- Latchbolt: 3/4 inch stainless steel throw
- Door thickness: 1-3/4 inch standard, up to 3-1/4 inch to order
- Cylinder: 6-pin brass, keyed-random with two keys included
- Mechanism: Stainless steel
- Field reversible handing
- 10-year mechanical warranty
- Available in 17 finishes
