Description

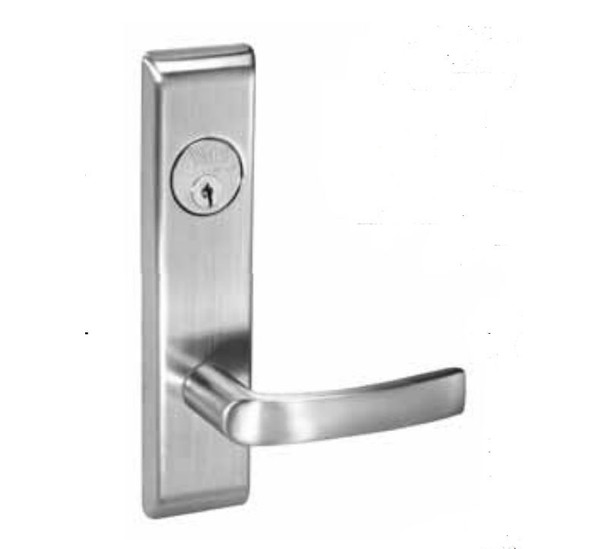

The Yale 8800 Series mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors. Built with a reinforced stainless steel deadbolt and heavy-duty vandal-resistant trim, this lock suits high-traffic entrances, offices, and institutional buildings requiring certified durability and long-term reliability.
Field-reversible handing and quick lever installation simplify setup on 1-3/4" standard doors. UL/cUL fire-rated up to 3 hours and windstorm certified. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, keying options, and compatibility. Contact sales@edlocks.com or 1-877-207-6067 for support.
Specifications
- ANSI/BHMA A156.13 Series 1000, Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Windstorm certified
- Mechanism: Stainless steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door thickness: 1-3/4 inch standard (up to 3-1/4 inch to order)
- Front: Bevel front, free-floating, adjusts flat to 1/8 inch bevel
- Cylinder: Brass, 6-pin keyed-random (7-pin available)
- Strike: 1-1/4 inch curved lip standard, reversible
- Field reversible handing
- Available in 17 finishes
- 10-year mechanical warranty
- Two keys furnished standard
