Description

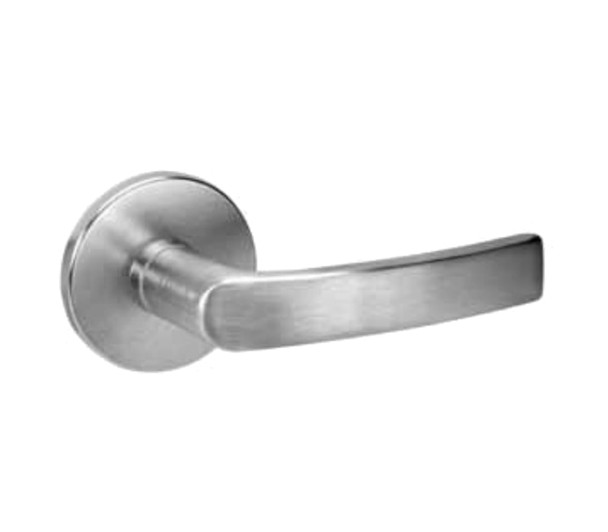

The Yale 8800 Series mortise lock is engineered for commercial doors requiring maximum strength and security. This trim pack suits facilities managers and building owners who need ANSI/BHMA Grade 1 certified hardware that withstands heavy use, vandalism, and demanding environments. Quick lever handing and field-reversible design simplify installation and future adjustments.
Compatible with 1-3/4" standard door thickness (up to 3-1/4" available to order), this lock features a stainless steel deadbolt, 6-pin keyed-random cylinder with two keys, and reversible strike. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, keying options, and compliance with local codes. Contact sales@edlocks.com or call 1-877-207-6067 for technical support and fast shipping on orders over $450.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (3-1/4" to order)
- Front: Bevel front, free-floating adjustment 0 to 1/8" in 2"
- Cylinder: Brass, 6-pin keyed-random (7-pin available)
- Strike: 1-1/4" curved lip reversible (other sizes to order)
- Reversibility: Field reversible handing
- Finishes: 17 options available
- Warranty: 10 year mechanical
