Description

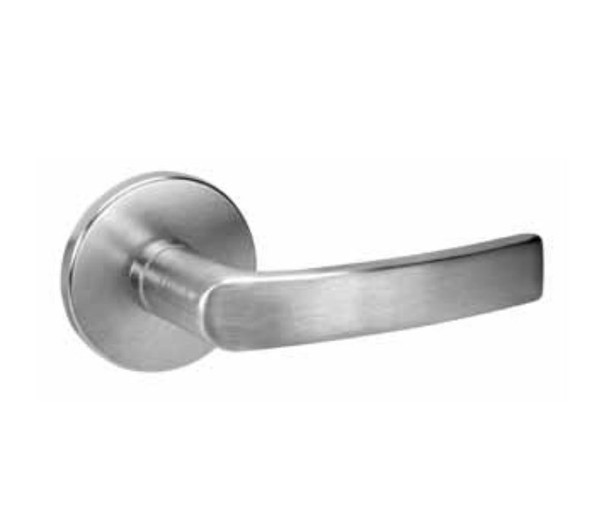

The Yale 8800 Series MOR8867FL mortise lock trim pack delivers Grade 1 commercial-grade security for high-traffic doors in offices, hospitals, schools and government buildings. Heavy-duty stainless steel construction, reinforced deadbolt and vandal-resistant trim withstand demanding daily use while field-reversible design simplifies installation across left and right-hand applications.
Compatible with standard 1-3/4" doors and available for thicker applications to 3-1/4". Quick lever handing, adjustable bevel front and nonhanded strike streamline installation. UL/cUL fire-rated for up to 3 hours. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert specification help, finish selection from 17 options, and a 10-year mechanical warranty.
Specifications
- ANSI/BHMA A156.13 Series 1000, Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Windstorm certified
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard; to 3-1/4" available
- Cylinders: Brass, 6-pin keyed-random with two keys; 7-pin available
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- Mechanism: Stainless steel
- Field reversible handing
- Available in 17 finishes
- 10-year mechanical warranty
