Description

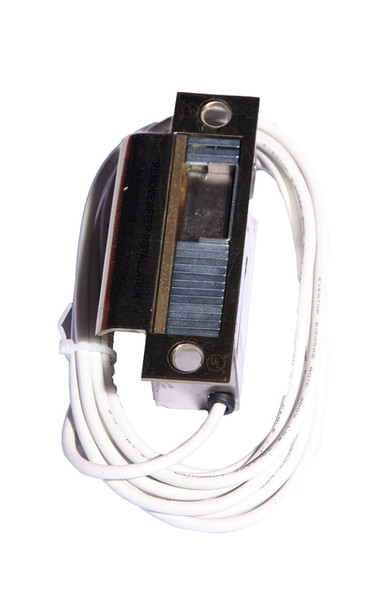

The Securitron Mortise UnLatch is an electric strike engineered for mortise-type locks in access control applications. It solves the need for fail-secure locking without jamb modification, delivering 1500 lbs holding force while maintaining deadlatch function continuously. Field-adjustable latch and deadlatch positions, latch status monitoring, and motorized operation make it ideal for commercial doors demanding reliability.
Fits standard ANSI 4-7/8" strike cutouts and works with most North American mortise locks (Sargent 7800/8200 series require optional STK-1 tab kit). Operates on 12 VDC or 24 VDC with low standby draw and recommended 1-4A supply for optimal preload performance. As an authorized Securitron dealer, E.D. Locks provides expert sizing, installation guidance, and ongoing support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Holding Force: 1500 lbs (680 kg) static
- Voltage: 12 VDC or 24 VDC
- Continuous Current: 40 mA
- Operating Current: 700 mA minimum (12 VDC), 500 mA minimum (24 VDC)
- Recommended Supply: 1-4 Amps
- Strike Cutout: Standard ANSI 4-7/8"
- Installation: Fully concealed, no jamb cutting required
- Function: Fail secure, motorized, latch status sensor included
