Description

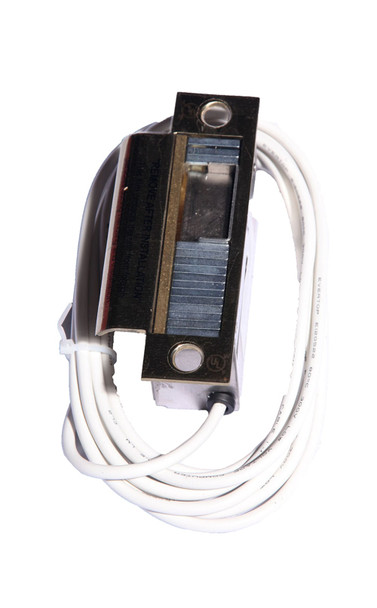

The Securitron Mortise UnLatch is an electric strike engineered for mortise-type locks in access control applications. It solves jamb modification by fitting standard ANSI 4-7/8" strike cutouts without cutting or altering the door frame, making it ideal for retrofits and new installations where security and convenience matter.
This fail-secure device maintains deadlatch function, releases under pressure and preload, and includes latch status monitoring as standard. Compatible with most North American mortise locks (Sargent 7800 and 8200 require optional STK-1 tab kit). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for voltage selection, power supply guidance, and compatibility verification.
Specifications
- Voltage: 12 VDC or 24 VDC (select at order)
- Continuous Current Draw: 40 mA
- Operating Current Draw: 12 VDC minimum 700 mA, 24 VDC minimum 500 mA
- Recommended Power Supply: 1-4 Amps capacity
- Holding Force: 1500 lbs (680 kg) static
- Strike Cutout: Standard ANSI 4-7/8 inch
- Installation: Fully concealed, motorized (no solenoids)
- Duty Cycle: Continuous
- Features: Field adjustable latch and deadlatch positions, latch status sensor, fail-secure, releases under preload
