Description

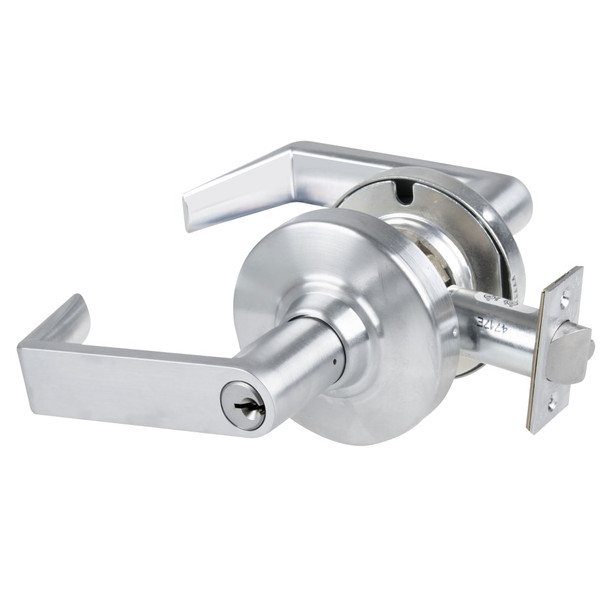

The Schlage ND50PD RHO 626 is a Grade 1 cylindrical lockset engineered for commercial environments including healthcare, education, government, and retail facilities. Built for durability and ease of installation, this lock accommodates standard door thicknesses and offers extensive keying options to secure any application without failure over millions of cycles.
This lockset is compatible with standard door preparations and includes two nickel silver keys per lock with the 6-pin Everest 29 S123 keyway. Installation spans 1 5/8 inch to 2 1/8 inch doors with a 2 3/4 inch backset. As an authorized Schlage dealer, E.D. Locks provides expert guidance on keying, compatibility and selection. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Schlage
- Model: ND50PD RHO 626 EE214
- Grade: Grade 1 certified
- Handing: Non-handed
- Door Thickness: 1 5/8 inch to 2 1/8 inch (41mm to 54mm) standard
- Backset: 2 3/4 inch (70mm) standard; 2 3/8 inch, 3 3/4 inch, 5 inch optional
- Faceplate: 1 1/8 inch x 2 1/4 inch square corner, beveled
- Latch Bolt: Steel, 1/2 inch throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two patented nickel silver keys per lock
- Strike: ANSI curved lip strike 1 1/4 inch x 4 7/8 inch x 1 3/16 inch standard
- Warranty: Ten-year limited
